XMGB 12"x12" laboratory grindability work index bond ball mill

XMGB 12"x12" laboratory grindability work index bond ball mill

12 "*12 " bond ball mill is a small universal laboratory mill used in calculating the grindability of all ores It s mainly used for grinding work index determination of ores, slag and other materials
Send Inquiry
Chat Now
Product Introduction

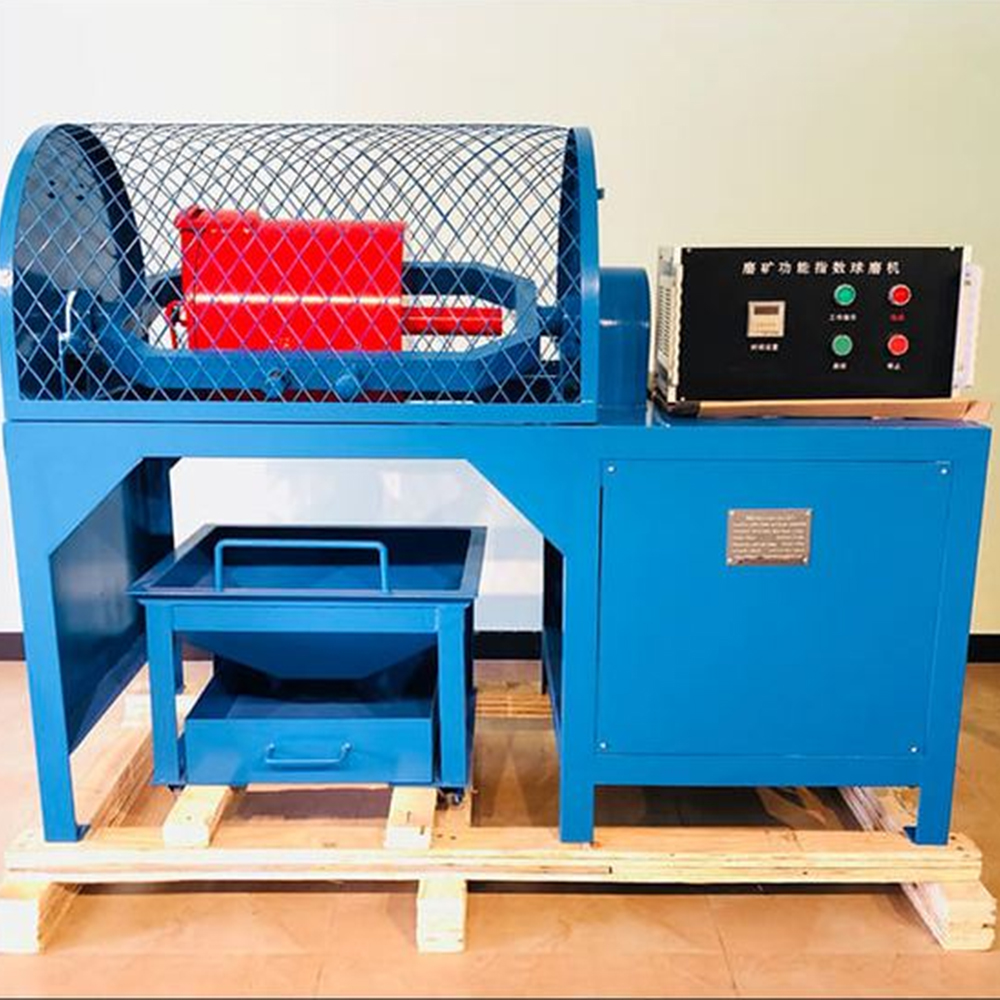

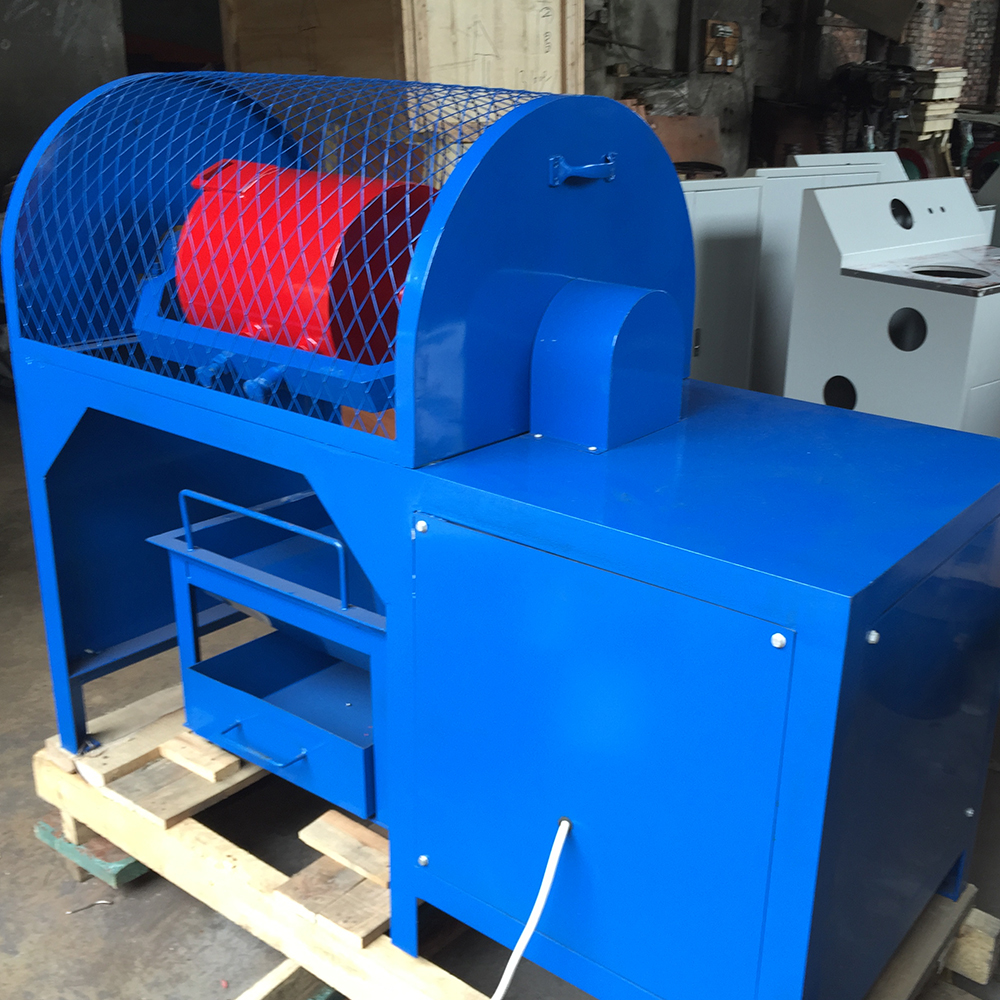

Introduction for laboratory bond ball mill

12"*12" bond ball mill is a small universal laboratory mill used in calculating the grindability of all ores.

XMGQ series work index ball mill is mainly used for grinding work index determination of ores, slag and other materials, a measure of grindability and power required for grinding applications.The machines are used in laboratories throughout the world.

This Grindability Test or Bond Ball Mill Work Index Procedure is used to determine the Bond Work Index of minus six mesh or finer feed ore samples.

Specification for bond ball mill


Model

Unit

XMGQ305*305

XMGQ305*610

Drum Size

mm

Φ305*305

Φ305*610

Drum Speed

r/min

70

46

Ball Weight

kg

20.568

33.38

Max Feeding Size

mm

3.2

12.7

Volume per time

cm3

700

1250

Voltage

v

380

380

Motor

kw

0.75

1.1

Dimension

mm

1500*630*1100

930*610*1185

Weight

kg

330

400


Working Principle for Laboratory Ball Mill

It requires to add the materials and regulated steel balls into the drum for dry grinding. Then repeat to screen and weigh the products so as to work out the grinding work index.


Features for Index Ball Mill

Used to determine the work index of grinding of ores; For lab testing or small scale grinding; Low price but fast delivery; High
quality & Stable performance; Speed adjustable and timeset available .



Packing for work index ball mill

The bond ball test mill will be packed export wooden box.
