XFD II laboratory flotation separator

XFD II laboratory flotation separator

We have the following different models of lab flotation machine as below 1 XFDI Flotation machine 2 XFDII Flotation machine 3 XFDIII Flotation machine 4 D12 Muti-cell flotation Cell 5 Hanging type lab flotation machine
Send Inquiry
Chat Now
Product Introduction

XFD-II type Single Tank Laboratory Flotation Cell Machine

We have the following different models of lab flotation machine as below.
1.XFDI Flotation machine
2.XFDII Flotation machine
3.XFDIII Flotation machine
4.D12 Muti-cell flotation Cell
5. Hanging type lab flotation machine

lab flotation machine.jpg

The XFD series single cell lab flotation machine have three types: XFDI, XFDII, XFDIII.
1. XFD-I Single Cell Flotation Machine

XFDI small flotation cell: the ordinary simple type, the impeller rotary speed can not be adjustable, and without LED display screen, without heater device, can not control temperature of the minerals. Applied in laboratory flotation of a small amount of sample ore in such areas as geology,metallurgy,building material and chemical industry.


Specification for XFD I type lab flotation machine

Technical parameters

Models

XFD0.5

XFD0.75

XFD1.0

XFD1.5

XFD3.0

XFD8

Capacity(L)

0.5

0.75

1

1.5

3

8

Rotary speed of impeller(r/min)

2590/2340

2100/1900

1910/1750

1890/1708

1400

Impeller diameter (mm)

45

55

60

70

100

Rotary speed of scraper(r/min)

15/30

7.9/19.1

Size of feeding(mm)

-0.2

Motor power(w)

90

2500

Overall size(mm)

400*310*660

400*310*700

460*350*780

Weight(kg)

26

32

50

78


2. XFD-II Single Cell Flotation Machine

it is the updated version of XFD I, the impeller rotary speed can be adjustable as your needs, but with LED  display screen, without heater device, can not control temperature of the minerals.
Advantage for xfd series single cell flotation machine
Frequency conversion technology;
Stepless speed regulation of vane wheel;
LCD display;
Accurate direction adjustment;
Reliable operation;
Allowing installation of temperature controller;
Instant display of temperature of pulp in the cell;
Inflatable single cell flotator of FDC is designed with liquid level regulation, inflating volume regulation, digital display of
rotary speed and water supplement functions.


Specification for II type flotation separator

ModelXFD II-0.5XFD II-0.75XFD II-1XFD II-1.5XFD II-3XFD II-8
Cell capacity0.50.7511.538
Rotary speed of impeller(r/min)0-28000-1400
Impeller diameter(mm)45556070100
Rotary speed of scraper(r/min)0-30
Spindle motor(w)120W250w
Feeding size (mm)0.04-0.25
Dimensions(mm)520*338*770520*338*770520*338*770560*338*770570*338*820580*505*970
Weight(kg)262835405080


2. XFD-III Single Cell Flotation Machine

It is the highest grade type. It uses inverter technology, variable speed impeller, digital display, and with heater device, which control temperature of the minerals and Air inflatation.
It is equipped with additional water level automatically adjusts automatically administration and other devices, can achieve a higher level of automation. Gas of pump tank supply to the rotor agitation, and mix with ore fluid, the stator is cut to produce tiny bubbles mineralization Rotor speed is stepless and can be adjusted by inverter.Fixed flotation tank fasten by hand wheel drive screw clamp.Shaving foam body, its trajectory is a circular motion.

Advantages: Frequency conversion adjustable speed, heating temperature; air inflatable.



Specification for III type flotation machine

ModelXFD III-0.5XFD III-0.75XFD III-1XFD III-1.5XFD III-3XFD III-8
Cell capacity (L)0.50.7511.538
Rotary speed of impeller(r/min)0-28000-1400
Impeller diameter(mm)45556070100
Rotary speed of scraper(r/min)15-30
Feeding size(mm)<0.25
Heating power(w)200w
Temperature adjust range()50-95
Motor power(w)120250
Voltage(V)220
Dimensions(mm)440*320*730520*338*770520*338*770560*338*770470*330*870580*505*970
Weight(kg)303035435080


Application for  xfdiii-3l laboratory flotation separator

Flotation machine is applicable for separating non-ferrous metal, black metal, noble metal, non-metal mineral, raw body and materials of chemical industry, which are subject to coarse separation, swept separation, fine separation and flotation, so the useful ore are reclaimed.



Working principle for Small Size Flotation Equipment

The floatation machine has the advantages of large air-absorption capacity and low energy consumption. Every cell owns three functions: air absorption, slurry absorption, and floatation separation, and the cells form a floatation separation loop by itself without any auxiliary equipment, and is allocated horizontally, which favors the change of flow. The circulation of mineral slurry is reasonable, and can avoid the disposition of coarse sand to the largest extent. There is self-control device on the surface of mineral slurry, so it is easy to adjust it. The impeller has backward-inclined upper and lower vanes, which produce upper and lower circulation of mineral slurry respectively.

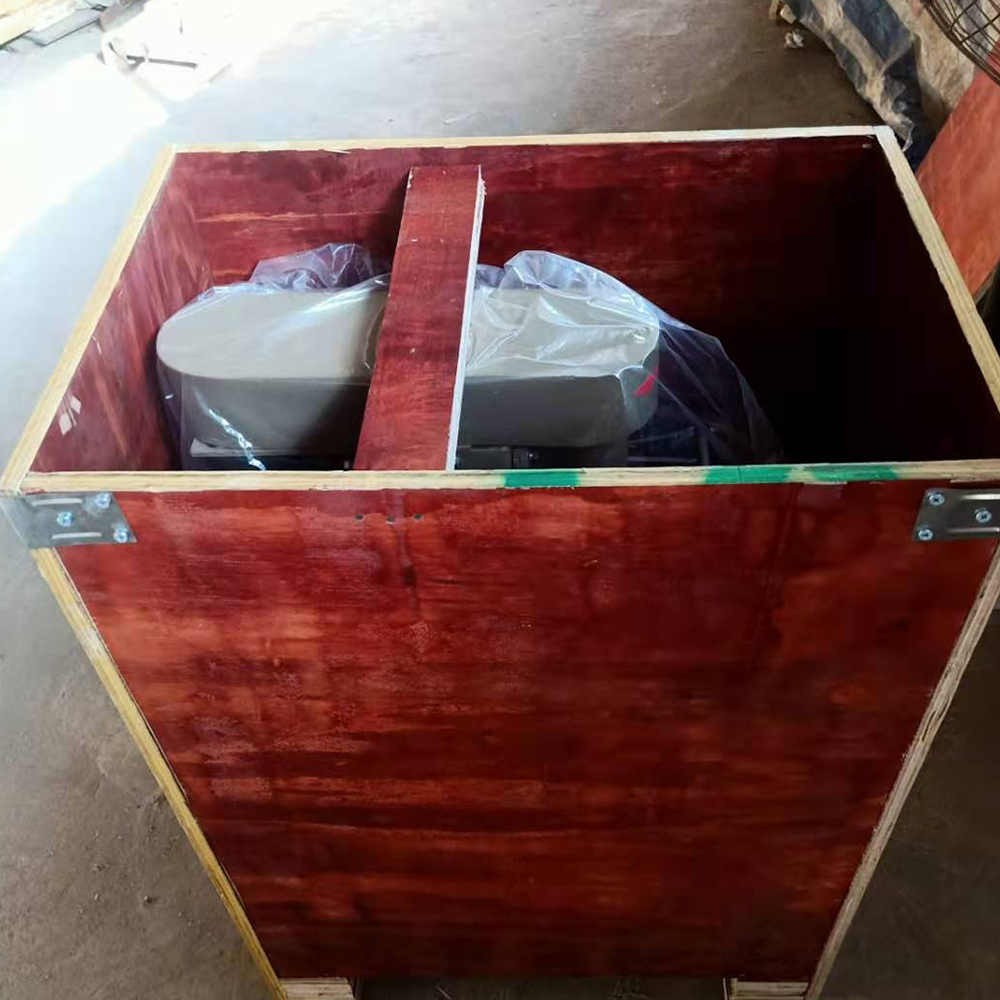

Packing for lab flotator

The flotation machine will be packed export wooden box and picture as below
