xfg50-100 laboratory flotation cell machine

xfg50-100 laboratory flotation cell machine

XFG pneumatic hanging cell flotation cell is used for agitation, separation, scrubbing and cleaning of minor samples in labs of research institutes and mining bodies involving geology, metallurgy, building materials and chemical industry
Send Inquiry
Chat Now
Product Introduction

Hanging type laboratory hanging flotation cell

We have the following different models of lab flotation machine as below.
1.XFDI Flotation machine
2.XFDII Flotation machine
3.XFDIII Flotation machine
4.D12 Muti-cell flotation Cell
5. Hanging type lab flotation machine

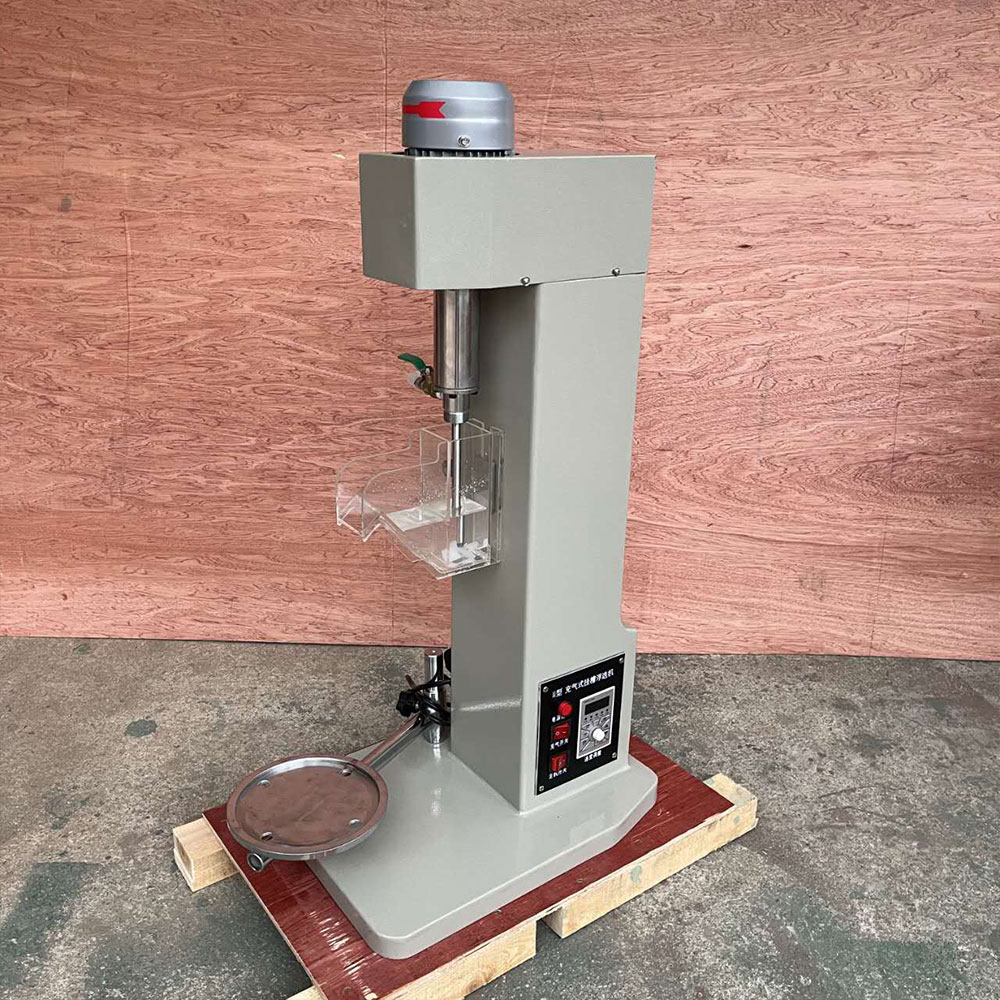

lab flotation machine.jpg

Description for hanging type lab flotation separator

XFG pneumatic hanging cell flotation cell is used for agitation, separation, scrubbing and cleaning of minor samples in labs of research institutes and mining bodies involving geology, metallurgy, building materials and chemical industry.

The structure in the design features large capacity of aeration, central aeration, stepless speed governing of inverter, rapid speed of flotation, desirable separation indexes than others.

XFG pneumatic hanging cell flotation machine is adopting frequency conversion technology, stepless speed governing of impeller digital display with accurate adjustment and reliable operation.

 Specification for hanging type flotator

Items

Unit

Model

XFG5-35

XFG50-100

Cell capacity

g

5, 15, 25, 35

50, 100

Cell volume

ml

20, 60, 100, 140

200, 400

Impeller dia.

mm

φ20, φ26

φ26, φ30

φ36, φ48

Impeller speed

rpm

1000-1850

Feeding size

mm

0.05-0.2

Motor model

YTC-180-4/125

YTC-180-4/125

Motor power

W

180

180

Dimension

mm

450*300*700

450*300*700


Working principle for hanging flotator

The floatation machine has the advantages of large air-absorption capacity and low energy consumption. Every cell owns three functions: air absorption, slurry absorption, and floatation separation, and the cells form a floatation separation loop by itself without any auxiliary equipment, and is allocated horizontally, which favors the change of flow. The circulation of mineral slurry is reasonable, and can avoid the disposition of coarse sand to the largest extent. There is self-control device on the surface of mineral slurry, so it is easy to adjust it. The impeller has backward-inclined upper and lower vanes, which produce upper and lower circulation of mineral slurry respectively.



Packing

The froth flotation plant will be packed export wooden box and picture as below
