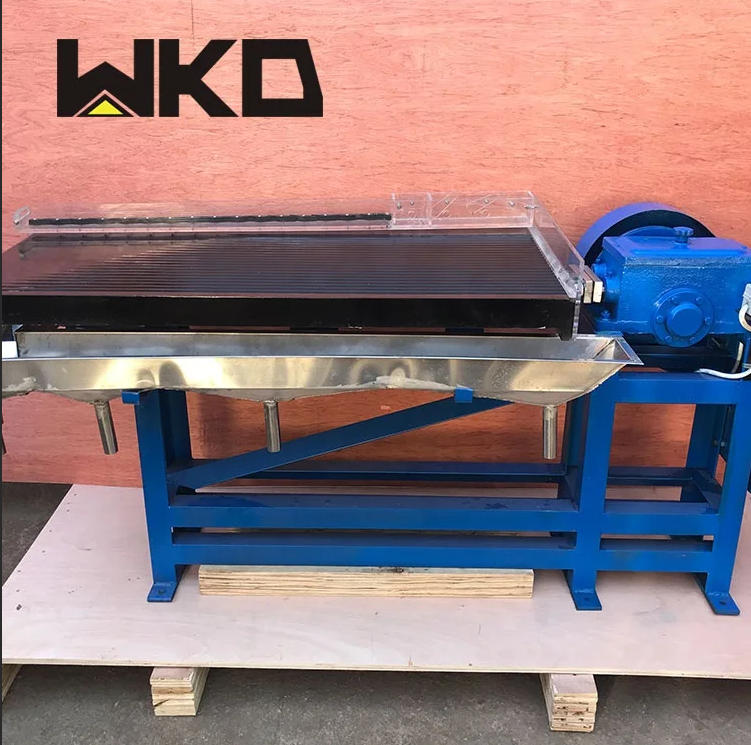

LYN(S)-1100x500 Aluminum Alloy shaker table
Description for Laboratory shaking table
Laboratory Aluminum Alloy Shaker table is used for laboratory ore selectivity studies,Common equipment used for gravity separation in tests and small-scale ore processing plants,Mineral Sludge Type(LYN)Mineral Sand Type(LYS)The distinction.Laboratory Aluminum Alloy ShakerSuitable for fine and ultra-fine grains of rare metals,Black Metal,Non-ferrous metal,Precious Metals,Mineral and Coal Separation.It can not only independently perform mining operations,Can also be used with a jigging reel,Spiral Mineral Concentrator,Centrifugal Concentrator and Other Mineral Processing Equipment Used in Combination.
This equipment selects based on the density difference of selected minerals and their layered performance in the transverse water flow on an asymmetrically moving and inclined bed surface.Minerals with different specific gravity are clearly zoned on the bed surface,High-quality concentrate,Features Such as Ease of Operation and Adjustment.
Specification for lab shaker table
Item | Unit | LYN-1100*500 | |
Dimension | mm | 1100*500*430 | |
Stroke | mm | 8-18 | |
Times of stroke | r/min | 300-450 | |
Bed Angle adjustment range | 0-10 | ||
Feeding Size | slurry | mm | <0.174 |
Ore sand | <2 | ||
Feed concentration | % | 10-30 | |
Capacity | slurry | t/h | 0.01 |
Ore sand | 0.02 | ||
Water consumption | t/h | 0.1-0.5 | |
Motor | Model | Y801-4 | |
Power | W | 0.55 | |
Speed | KW | 1390 | |
Triangle belt | r/min | A-1245 | |
Dimension | mm | 1710*520*780 | |
Weight | kg | 150 | |
* Remark:
The precious metal shaking table have three distinct deck designs available.
The coarse ore deck is designed for recovering particles size from 0.5mm to 2mm
The fine sand deck is designed for recovering fine particles size from 0.074mm to 0.5mm
The slime deck is designed for recovering super extremely fine particles from 0.15mm to 0.074mm
Advantages for lab table concentrator
1 Ingenious structure of inertial gearing, self balanced vertical force component. No vertical jump because no vertical vibrating
force. It can be installed on the building floor, or on the bracket
2 Lift type, minimal consumption of friction, reduce vibration and energy-saving, non-required bulky base, quick and flexible
installation
3 It adopts fiberglass deck with wear-resistant layer, wear-resistant, waterproof, anti-dry, anticorrosion, non-deformed, less
maintenance, long service life
4 The deck installed in an uniform frame Layer-by-layer, easy to install and unload, increase processing capacity per unit area.
Replace different weight blocks can change the stroke of shaking bed
5 It adopts variable-frequency governor, easily change frequency of stroke to adapt different material with different particle size and feature
Packing for shaking table for testing
The table concentrator will be packed export wooden box and picture as below
